ACL/PCL Cortical Fixation Instrument Set

The ACL/PCL Cortical Fixation Case is a system that incorporates a variety of fixation options. The set includes low-profile 4.5 mm cortical, 6.5 mm cortical, and 6.5 mm cancellous screw options. It also includes low-profile spiked washers and ligament staples.The screws have extremely low profile heads to reduce soft tissue irritation. A step drill with laser depth marking countersinks the screw head flush to bone when used as a suture fixation post. The smooth shank with suture groove orients the sutures safely under the head during screw insertion. The optional, low profile spiked washer may be used in conjunction with the cancellous screw for fixation of soft tissue or tendons directly to bone.The instrumentation set includes a 2.5 mm Drill for Bi-Cortical Post to broach the cortical bone, while the depth device is used to obtain accurate sizing information. Although the post has a self-tapping feature, a tap is included for those who prefer the “drill-measure-tap” insertion technique.Ligament staples, with a low profile bridge, reduce the frequency of secondary removal due to patient discomfort caused by soft tissue irritation. The cobalt chrome spiked fixation staple has sharp leg points for easier penetration into cortical bone without predrilling. The Staple Driver with attachable impactor/extractor allows complete impaction since the staple driver tip is flush with the staple bridge. The Staple Seating Punch may be used for further impaction. All staples are 20 mm in length.

View More

The ACL/PCL Cortical Fixation Case is a system that incorporates a variety of fixation options. The set includes low-profile 4.5 mm cortical, 6.5 mm cortical, and 6.5 mm cancellous screw options. It also includes low-profile spiked washers and ligament staples.The screws have extremely low profile heads to reduce soft tissue irritation. A step drill with laser depth marking countersinks the screw head flush to bone when used as a suture fixation post. The smooth shank with suture groove orients the sutures safely under the head during screw insertion. The optional, low profile spiked washer may be used in conjunction with the cancellous screw for fixation of soft tissue or tendons directly to bone.The instrumentation set includes a 2.5 mm Drill for Bi-Cortical Post to broach the cortical bone, while the depth device is used to obtain accurate sizing information. Although the post has a self-tapping feature, a tap is included for those who prefer the “drill-measure-tap” insertion technique.Ligament staples, with a low profile bridge, reduce the frequency of secondary removal due to patient discomfort caused by soft tissue irritation. The cobalt chrome spiked fixation staple has sharp leg points for easier penetration into cortical bone without predrilling. The Staple Driver with attachable impactor/extractor allows complete impaction since the staple driver tip is flush with the staple bridge. The Staple Seating Punch may be used for further impaction. All staples are 20 mm in length.

View More
Request Product Info

Educational Resources and Products

All Resources
All Products
Videos
(1)
arrow_drop_down
Videos
Documents
(3)
arrow_drop_down
Documents
English
(4)
arrow_drop_down
Languages
Clear All Filters

Inventory Control Forms (1)

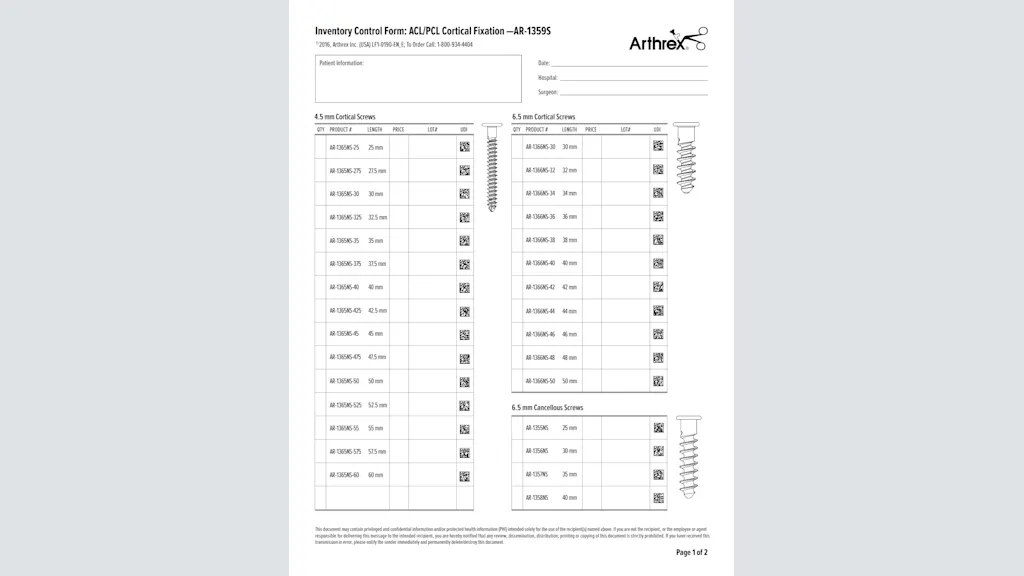

Inventory Control Form: ACL-PCL - Cortical Fixation - AR-1359S
Inventory Control Form: ACL-PCL - Cortical Fixation - AR-1359S
English | 09/15/2016 | LF1-0190-EN E

Presentation Videos (1)

PCL All-Inside Reconstruction
PCL All-Inside Reconstruction
Joel Boyd, MD
14:41 | English | 02/27/2014 | VPT1-00203-EN A

Reference Charts (1)

Arthrex Screwdriver Reference Chart for Titanium Interference Screws
Arthrex Screwdriver Reference Chart for Titanium Interference Screws
English | 12/13/2011 | LR0100 F

ACL PCL Cortical Fixation Set
AR-1359S

ACL PCL Cortical Fixation Set

Bi-Cortical Post, 4.5 mm x 25 mm
AR-1365-25

Bi-Cortical Post, 4.5 mm x 25 mm

Bi-Cortical Post, 4.5 mm x 27.5 mm
AR-1365-275

Bi-Cortical Post, 4.5 mm x 27.5 mm

Bi-Cortical Post, 4.5 mm x 30 mm
AR-1365-30

Bi-Cortical Post, 4.5 mm x 30 mm

Bi-Cortical Post, 4.5 mm x 32.5 mm
AR-1365-325

Bi-Cortical Post, 4.5 mm x 32.5 mm

Bi-Cortical Post, 4.5 mm x 35 mm
AR-1365-35

Bi-Cortical Post, 4.5 mm x 35 mm

Bi-Cortical Post, 4.5 mm x 37.5 mm
AR-1365-375

Bi-Cortical Post, 4.5 mm x 37.5 mm

Bi-Cortical Post, 4.5 mm x 40 mm
AR-1365-40

Bi-Cortical Post, 4.5 mm x 40 mm

Bi-Cortical Post, 4.5 mm x 42.5 mm
AR-1365-425

Bi-Cortical Post, 4.5 mm x 42.5 mm

Bi-Cortical Post, 4.5 mm x 45 mm
AR-1365-45

Bi-Cortical Post, 4.5 mm x 45 mm

Bi-Cortical Post, 4.5 mm x 47.5 mm
AR-1365-475

Bi-Cortical Post, 4.5 mm x 47.5 mm

Bi-Cortical Post, 4.5 mm x 50 mm
AR-1365-50

Bi-Cortical Post, 4.5 mm x 50 mm

Bi-Cortical Post, 4.5 mm x 52.5 mm
AR-1365-525

Bi-Cortical Post, 4.5 mm x 52.5 mm

Bi-Cortical Post, 4.5 mm x 55 mm
AR-1365-55

Bi-Cortical Post, 4.5 mm x 55 mm

Bi-Cortical Post, 4.5 mm x 57.5 mm
AR-1365-575

Bi-Cortical Post, 4.5 mm x 57.5 mm

Bi-Cortical Post, 4.5 mm x 60 mm
AR-1365-60

Bi-Cortical Post, 4.5 mm x 60 mm

Bi-Cortical Post, 6.5 mm x 30 mm
AR-1366-30

Bi-Cortical Post, 6.5 mm x 30 mm

Bi-Cortical Post, 6.5 mm x 32 mm
AR-1366-32

Bi-Cortical Post, 6.5 mm x 32 mm

Bi-Cortical Post, 6.5 mm x 34 mm
AR-1366-34

Bi-Cortical Post, 6.5 mm x 34 mm

Bi-Cortical Post, 6.5 mm x 36 mm
AR-1366-36

Bi-Cortical Post, 6.5 mm x 36 mm

Bi-Cortical Post, 6.5 mm x 38 mm
AR-1366-38

Bi-Cortical Post, 6.5 mm x 38 mm

Bi-Cortical Post, 6.5 mm x 40 mm
AR-1366-40

Bi-Cortical Post, 6.5 mm x 40 mm

Bi-Cortical Post, 6.5 mm x 42 mm
AR-1366-42

Bi-Cortical Post, 6.5 mm x 42 mm

Bi-Cortical Post, 6.5 mm x 44 mm
AR-1366-44

Bi-Cortical Post, 6.5 mm x 44 mm

Bi-Cortical Post, 6.5 mm x 46 mm
AR-1366-46

Bi-Cortical Post, 6.5 mm x 46 mm

Bi-Cortical Post, 6.5 mm x 48 mm
AR-1366-48

Bi-Cortical Post, 6.5 mm x 48 mm

Bi-Cortical Post, 6.5 mm x 50 mm
AR-1366-50

Bi-Cortical Post, 6.5 mm x 50 mm

Bi-Cortical Post, 6.5 mm x 52 mm
AR-1366-52

Bi-Cortical Post, 6.5 mm x 52 mm

Bi-Cortical Post, 4.5 x 25 mm
AR-1365NS-25

Bi-Cortical Post, 4.5 x 25 mm

Bi-Cortical Post, 4.5 x 27.5 mm
AR-1365NS-275

Bi-Cortical Post, 4.5 x 27.5 mm

Bi-Cortical Post, 4.5 x 30 mm
AR-1365NS-30

Bi-Cortical Post, 4.5 x 30 mm

Bi-Cortical Post, 4.5 x 32.5 mm
AR-1365NS-325

Bi-Cortical Post, 4.5 x 32.5 mm

Bi-Cortical Post, 4.5 x 35 mm
AR-1365NS-35

Bi-Cortical Post, 4.5 x 35 mm

Bi-Cortical Post, 4.5 x 37.5 mm
AR-1365NS-375

Bi-Cortical Post, 4.5 x 37.5 mm

Bi-Cortical Post, 4.5 x 40 mm
AR-1365NS-40

Bi-Cortical Post, 4.5 x 40 mm

Bi-Cortical Post, 4.5 x 42.5 mm
AR-1365NS-425

Bi-Cortical Post, 4.5 x 42.5 mm

Bi-Cortical Post, 4.5 x 45 mm
AR-1365NS-45

Bi-Cortical Post, 4.5 x 45 mm

Bi-Cortical Post, 4.5 x 47.5 mm
AR-1365NS-475

Bi-Cortical Post, 4.5 x 47.5 mm

Bi-Cortical Post, 4.5 x 50 mm
AR-1365NS-50

Bi-Cortical Post, 4.5 x 50 mm

Bi-Cortical Post, 4.5 x 52.5 mm
AR-1365NS-525

Bi-Cortical Post, 4.5 x 52.5 mm

Bi-Cortical Post, 4.5 x 55 mm
AR-1365NS-55

Bi-Cortical Post, 4.5 x 55 mm

Bi-Cortical Post, 4.5 x 57.5 mm
AR-1365NS-575

Bi-Cortical Post, 4.5 x 57.5 mm

Bi-Cortical Post, 4.5 x 60 mm
AR-1365NS-60

Bi-Cortical Post, 4.5 x 60 mm

Bi-Cortical Post, 6.5 x 30 mm
AR-1366NS-30

Bi-Cortical Post, 6.5 x 30 mm

Bi-Cortical Post, 6.5 x 32 mm
AR-1366NS-32

Bi-Cortical Post, 6.5 x 32 mm

Bi-Cortical Post, 6.5 x 34 mm
AR-1366NS-34

Bi-Cortical Post, 6.5 x 34 mm

Bi-Cortical Post, 6.5 x 36 mm
AR-1366NS-36

Bi-Cortical Post, 6.5 x 36 mm

Bi-Cortical Post, 6.5 x 38 mm
AR-1366NS-38

Bi-Cortical Post, 6.5 x 38 mm

Bi-Cortical Post, 6.5 x 40 mm
AR-1366NS-40

Bi-Cortical Post, 6.5 x 40 mm

Bi-Cortical Post, 6.5 x 42 mm
AR-1366NS-42

Bi-Cortical Post, 6.5 x 42 mm

Bi-Cortical Post, 6.5 x 44 mm
AR-1366NS-44

Bi-Cortical Post, 6.5 x 44 mm

Bi-Cortical Post, 6.5 x 46 mm
AR-1366NS-46

Bi-Cortical Post, 6.5 x 46 mm

Bi-Cortical Post, 6.5 x 48 mm
AR-1366NS-48

Bi-Cortical Post, 6.5 x 48 mm

Bi-Cortical Post, 6.5 x 50 mm
AR-1366NS-50

Bi-Cortical Post, 6.5 x 50 mm

Screw, Cancellous, Low Profile, 6.5 mm x 25 mm
AR-1355

Screw, Cancellous, Low Profile, 6.5 mm x 25 mm

Screw, Cancellous, Low Profile, 6.5 mm x 30 mm
AR-1356

Screw, Cancellous, Low Profile, 6.5 mm x 30 mm

Screw, Cancellous, Low Profile, 6.5 mm x 35 mm
AR-1357

Screw, Cancellous, Low Profile, 6.5 mm x 35 mm

Screw, Cancellous, Low Profile, 6.5 mm x 40 mm
AR-1358

Screw, Cancellous, Low Profile, 6.5 mm x 40 mm

Drill for Low Profile Cancellous Screws, 25 mm
AR-1355D

Drill for Low Profile Cancellous Screws, 25 mm

Screw, Cancellous, Low Profile, 6.5 x 25 mm
AR-1355NS

Screw, Cancellous, Low Profile, 6.5 x 25 mm

Screw, Cancellous, Low Profile, 6.5 x 30 mm
AR-1356NS

Screw, Cancellous, Low Profile, 6.5 x 30 mm

Screw, Cancellous, Low Profile, 6.5 x 35 mm
AR-1357NS

Screw, Cancellous, Low Profile, 6.5 x 35 mm

Screw, Cancellous, Low Profile, 6.5 x 40 mm
AR-1358NS

Screw, Cancellous, Low Profile, 6.5 x 40 mm

Spiked Washer for Cancellous Screw, 14 mm
AR-1349

Spiked Washer for Cancellous Screw, 14 mm

Spiked Washer for Cancellous Screw, 18 mm
AR-1349L

Spiked Washer for Cancellous Screw, 18 mm

Suture Washer for Cancellous Screw, 14 mm
AR-1349M

Suture Washer for Cancellous Screw, 14 mm

Suture Washer for Cancellous Screw, 18 mm
AR-1349LM

Suture Washer for Cancellous Screw, 18 mm

Washer, Spiked, 14 mm
AR-1349NS

Washer, Spiked, 14 mm

Washer, Spiked, 18 mm
AR-1349LNS

Washer, Spiked, 18 mm

Washer, Suture, 14 mm
AR-1349MNS

Washer, Suture, 14 mm

Washer, Suture, 18 mm
AR-1349LMNS

Washer, Suture, 18 mm

Spiked Ligament Staple, 6 mm x 20 mm
AR-1006

Spiked Ligament Staple, 6 mm x 20 mm

Spiked Ligament Staple, 8 mm x 20 mm
AR-1008

Spiked Ligament Staple, 8 mm x 20 mm

Spiked Ligament Staple, 11 mm x 20 mm
AR-1011

Spiked Ligament Staple, 11 mm x 20 mm

Spiked Ligament Staple, 16 mm x 20 mm
AR-1016

Spiked Ligament Staple, 16 mm x 20 mm

Staple Driver Set
AR-1005S

Staple Driver Set

Staple Driver
AR-1005

Staple Driver

Elevator for Staple Removal
AR-1005E

Elevator for Staple Removal

SLAP Hammer/Extractor
AR-1005H

SLAP Hammer/Extractor

Staple Seating Punch
AR-1010

Staple Seating Punch

SlapDriver, Ratcheting Quick Connect
AR-1999SD

SlapDriver, Ratcheting Quick Connect

Fixed Handle SlapDriver for 20 mm and 30 mm Screws
AR-1996SD

Fixed Handle SlapDriver for 20 mm and 30 mm Screws

Fixed Handle SlapDriver for 20 mm Screws
AR-4020SD

Fixed Handle SlapDriver for 20 mm Screws

Fixed Handle SlapDriver for 6 mm x 20 mm Screws
AR-4019SD

Fixed Handle SlapDriver for 6 mm x 20 mm Screws

Ratcheting Screwdriver Handle
AR-1999

Ratcheting Screwdriver Handle

Non-Ratcheting Screwdriver Handle
AR-1999NR

Non-Ratcheting Screwdriver Handle

Noncannulated Short Screwdriver Shaft, 2.5 mm Hex, 5.5 mm x 17 cm
AR-1995SHN

Noncannulated Short Screwdriver Shaft, 2.5 mm Hex, 5.5 mm x 17 cm
